Academics use London Tube map to model options for nuclear fuel cycle

A new review paper from the Dalton Nuclear Institute at The University of Manchester uses a Tube map design to examine how closing the nuclear fuel cycle - recycling and reusing materials from used fuel - improves the sustainability of nuclear energy.

Titled 'Sustainability of Nuclear Energy—A Critical Review of Closed Fuel Cycle Options', the review compares six fuel cycle pathways of varying complexity, from the simplest once-through cycle where all spent fuel is treated as waste, to more advanced options incorporating multiple stages of recycling.

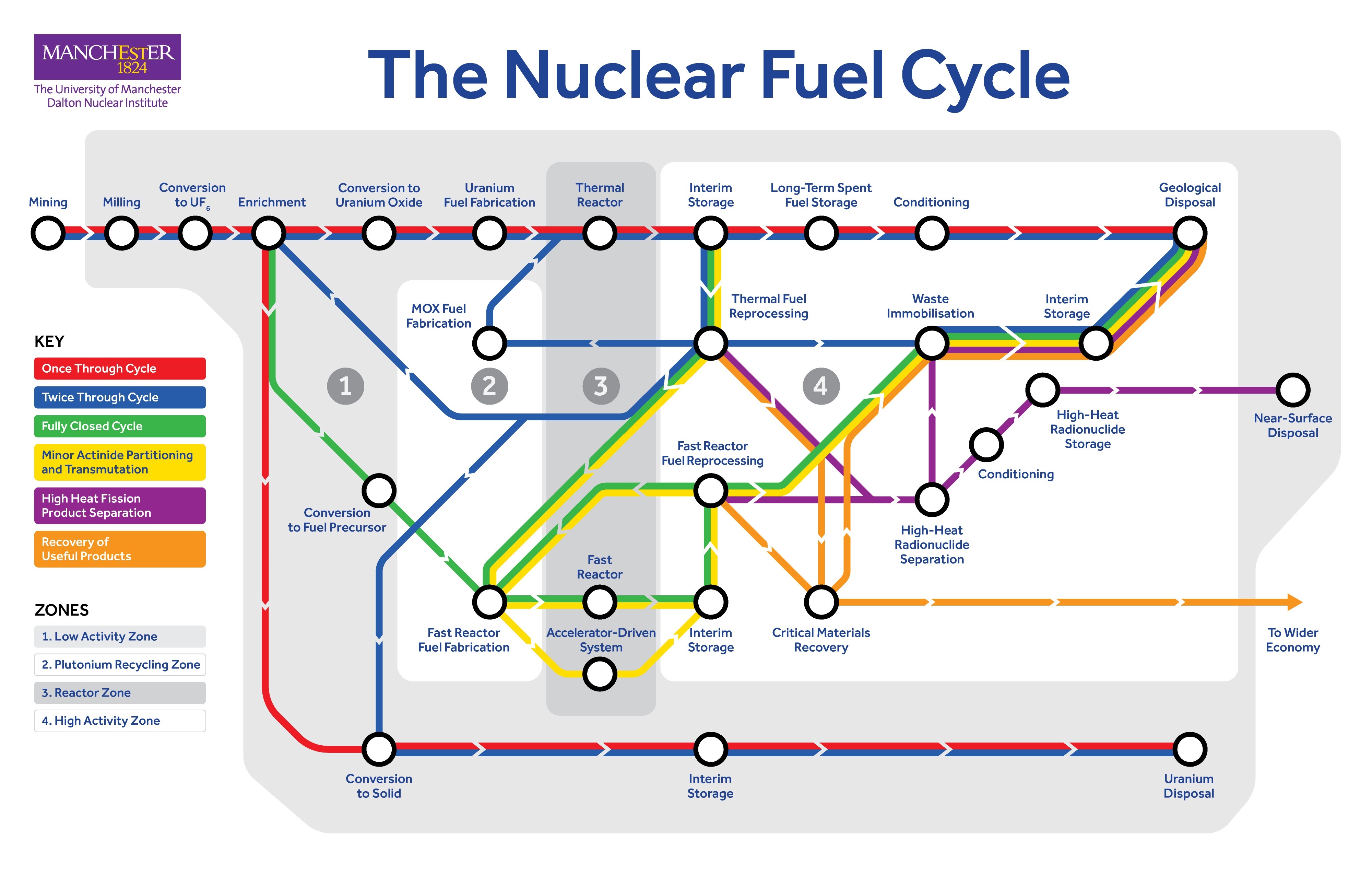

To make the comparison accessible, the authors present the six options as a ‘Tube map’, modelled on the London Underground - a first for the field.

Today’s nuclear reactors already compare well with renewable technologies when it comes to many sustainability metrics. However, this review finds that closing the fuel cycle could improve sustainability further still, delivering benefits for natural resource use, environmental footprint, management of high-level radioactive waste, and energy security.

Co-author Professor Robin Taylor, of the Dalton Nuclear Institute and the UK National Nuclear Laboratory, said: “Closing the fuel cycle does come with real challenges, including those around safety, security, and cost. However, by drawing on the UK’s own experience as a case study, our review finds that these challenges can be addressed and do not necessarily rule out the benefits of reusing nuclear fuel”.

Co-author Dr William Bodel, of the Dalton Nuclear Institute, added: “Our review shows that while nuclear energy is already a sustainable source of low-carbon energy, successfully closing the fuel cycle could enhance this further. Visualising various fuel cycle options together is hard given the amount of information which needs to be presented simultaneously. Harry Beck’s 1930s London Underground map does an excellent job at communicating complicated information, so applying its design here seemed a good solution to aid visual understanding.”

Read the full review: Sustainability of Nuclear Energy—A Critical Review of Closed Fuel Cycle Options

The review was authored by:

• Dr William Bodel
• Professor Anthony Banford
• Professor Gregg Butler
• Professor Francis Livens
• Professor Robin Taylor
